Adopting 3D Modeling for Client Projects

The Challenge with Traditional Design

In complex industrial environments like petrochemical plants or pharmaceutical facilities, precision is non-negotiable. For decades, engineers have relied on traditional 2D drawings (like blueprints and isometric-views) to plan and execute these projects.

While effective, 2D plans can create challenges:

• Interpretation: They require specialized knowledge to read, and it can be difficult for all stakeholders (like project managers or client-side teams) to visualize the final outcome.
• Hidden Conflicts: In a 2D-plane, it's incredibly difficult to spot where different systems—like piping, electrical trays, and structural steel—might conflict in 3D space.
• On-Site Errors: These "clashes" are often only discovered during construction, leading to costly on-site rework, schedule delays, and material waste.

At Einz Engineering, we believe there is a better way. We have fully embraced advanced 3D modeling as a standard part of our EPCM (Engineering, Procurement, Construction, Management) process to solve these problems before they ever reach the field.

Benefit 1: Improving Project Accuracy with Clash Detection

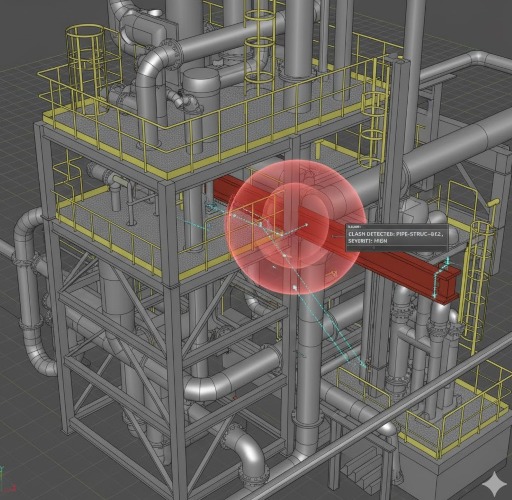

The single biggest advantage of 3D modeling is automated clash detection.

Our engineering team builds a detailed, 1:1 digital twin of your facility. We model every pipe, valve, I-beam, and piece of equipment in a shared virtual space.

Before a single piece of steel is fabricated, our software can run a comprehensive analysis to identify every single point of conflict. We can see exactly where a pipe might hit a structural support, or where an electrical conduit doesn't have proper clearance.

By resolving these issues digitally in the design phase, we move problem-solving from the (expensive) construction site to the (efficient) office. This drastically improves the accuracy of our designs and ensures constructability.

"By resolving conflicts in the digital world, we ensure flawless execution in the real world. That is the power of 3D modeling."

Benefit 2: Reducing Waste, Time, and Budget

When we say "reduce waste," we don't just mean materials. We mean:

• Wasted Time: Eliminating on-site rework keeps the project on schedule.
• Wasted Labor: Construction teams can work efficiently, knowing the plans are accurate and all components will fit as designed.
• Wasted Materials: Rework often means scrapping incorrect fabrications. Our 3D models allow for highly accurate material take-offs (MTOs) and precision pre-fabrication (like pipe spooling), minimizing scrap.

This lean approach directly translates to significant cost savings and budget certainty for our clients.

Benefit 3: Providing Clients with a Clear, Shared Vision

Perhaps the most powerful benefit for our clients is clarity.

A 3D model is intuitive. It replaces ambiguous lines on a page with a living, virtual model of your project. We can:

• Conduct Virtual Walk-Throughs: "Walk" you through your future plant before it’s built.
• Visualize Operations: See if a critical valve is accessible for maintenance or if a piece of equipment can be easily replaced.
• Align Stakeholders: Ensure that your project managers, finance team, and operations staff all have the same clear understanding of the final product.

This level of visualization makes design review meetings more productive and removes ambiguity, ensuring the final project aligns perfectly with your expectations.

The Einz Commitment: Better Data, Better Projects

Adopting 3D modeling isn't just about using new technology; it's about our commitment to delivering projects on time, on budget, and to the highest standards of quality and safety. By de-risking the project, enhancing collaboration, and providing absolute clarity, we give our clients the certainty and confidence they need to succeed.
